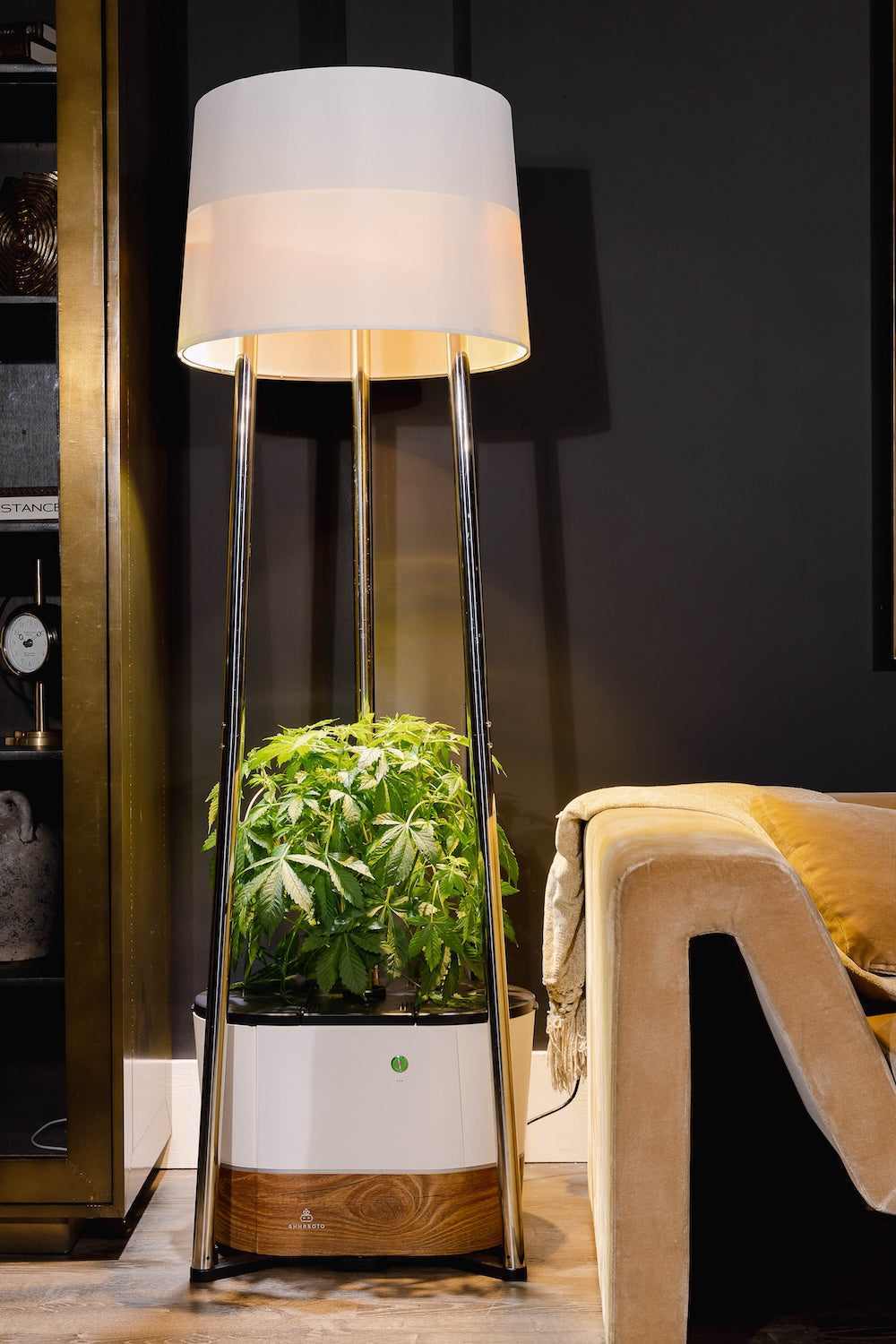

Experience The Annaboto

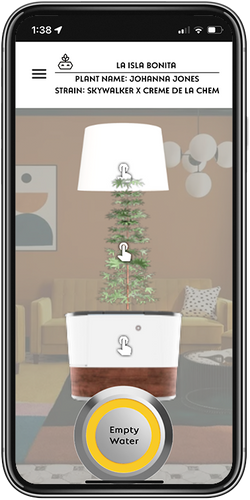

ANNABOTO COMES WITH A MOBILE ASSISTANT

  • View your plant anytime from anywhere, and share with your friends.

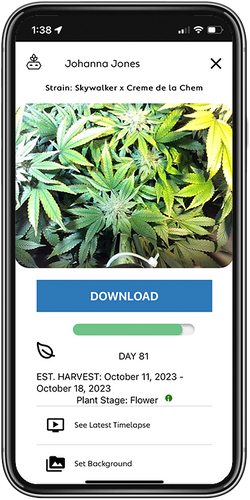

    Download a timelapse of your plant's growth.
    Estimate the harvest date.

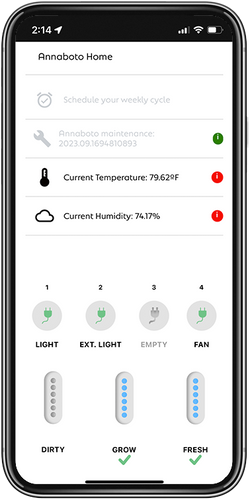

    Monitor and adjust the plant's environment with software-controlled outlets (e.g. humidifier) from your phone
    Get alerts if the plant needs help.
Annaboto App Dashboard Annaboto App Dashboard Annaboto App Dashboard Annaboto App Dashboard Annaboto App Dashboard Arrow

General Tech Specs

Power

  • 120 VAC, 3 A Typical
  • 4 x Software Controlled Outlets, 1200 Watts Max Output

Connectivity

  • Supported OS - iOS & Android
  • Over the air firmware and software upgrades
  • 2.4 & 5 GHz Wi-Fi or Ethernet

Lighting

  • 200W Max Power LED, Focused to 38 Degrees
  • Dimmability: 40-100%
  • Full spectrum for all phases of plant growth

Sensors

  • Ambient Air Temperature Sensor
  • Ambient Air Humidity Sensor
  • Water Level Sensors

Features

  • Air temperature and humidity control
  • Drying mode
  • Automatic nutrient dosing
  • Deep Water Culture hydroponics system
  • Automatic water fill and drain
  • Odor management active carbon filter
  • HD camera
  • App controlled
See it in 3d

So, what's the journey like?

Behind The Scenes

For the nerds

More Specs

+

Lighting

  • Annaboto uses 2 x 100W COB LEDs powered by Meanwell Drivers
  • White Light - 6000-6500K Temperature
  • Orange Light - 3000-3500K Temperature
  • Aluminum Heatsinks with Fans and Overtemp Protection
  • Lenses focus light to 38 Degrees
  • Both lights are independently dimmable
+

Nutrient Micro Dosing

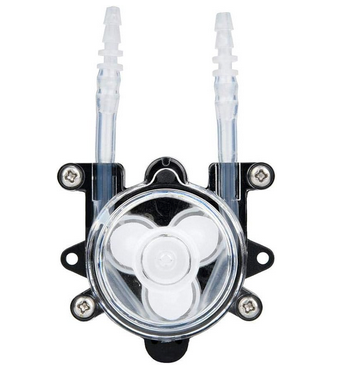

  • Peristaltic Pumps are used to pump each of the 4 fertilizers we use.
  • The pumps and the sensing attached to them provide us with +/- 0.05 ml accuracy

+

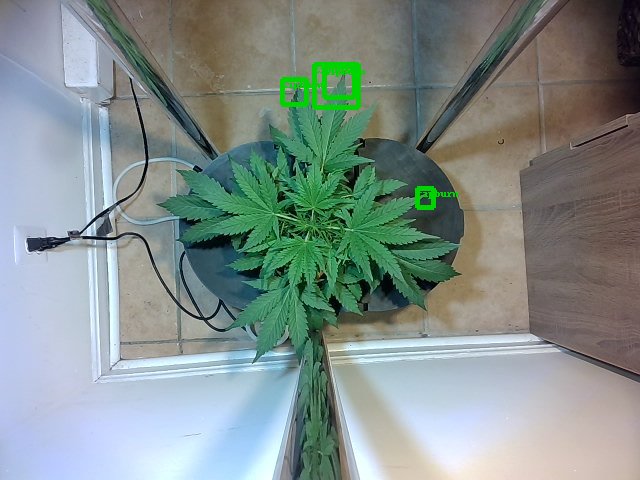

Vision and AI

  • We use a 5MP camera with auto-focus to help take pictures on a daily basis in a consistent.
  • We take a picture every 15 minutes.
  • Pictures help determine plant health and stage.
  • We also provide you with access to a video timelapse so you can see your babies grow.
+

Environmental Control

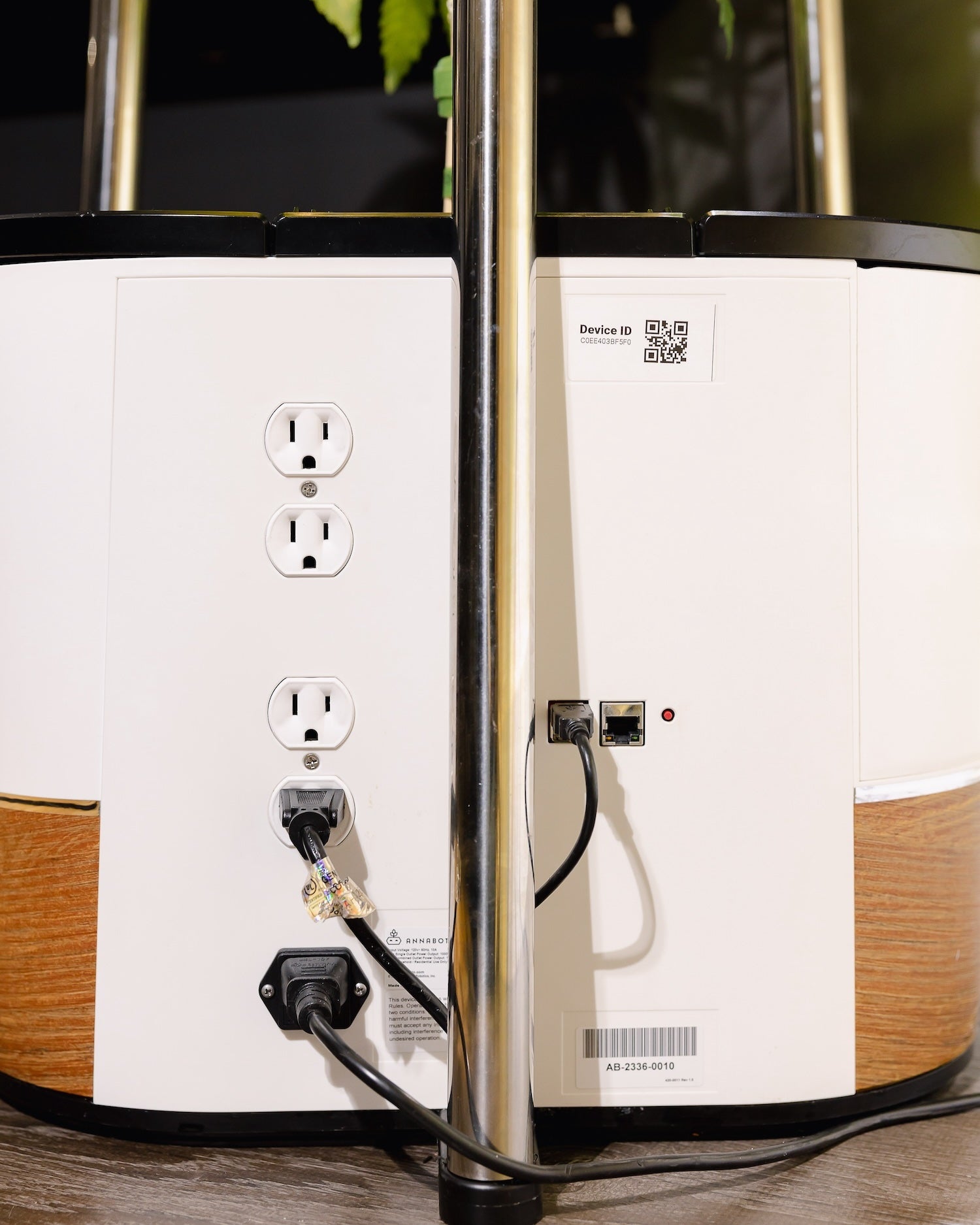

  • There are 4 software controlled outlets in the back of the Annaboto.
  • Each outlet can be configured for different accessories like humidifiers and heaters (just in case the environment is too harsh)
  • You can power a maximum of 1000W worth of simultaneously running accessories.
+

Odor Management

  • Oh, yes! The odor. Some people love it, some people don't.
  • We have a customer controlled fan built into the lamp that can suck the stinky air through a consumable filter to help manage the odor.
